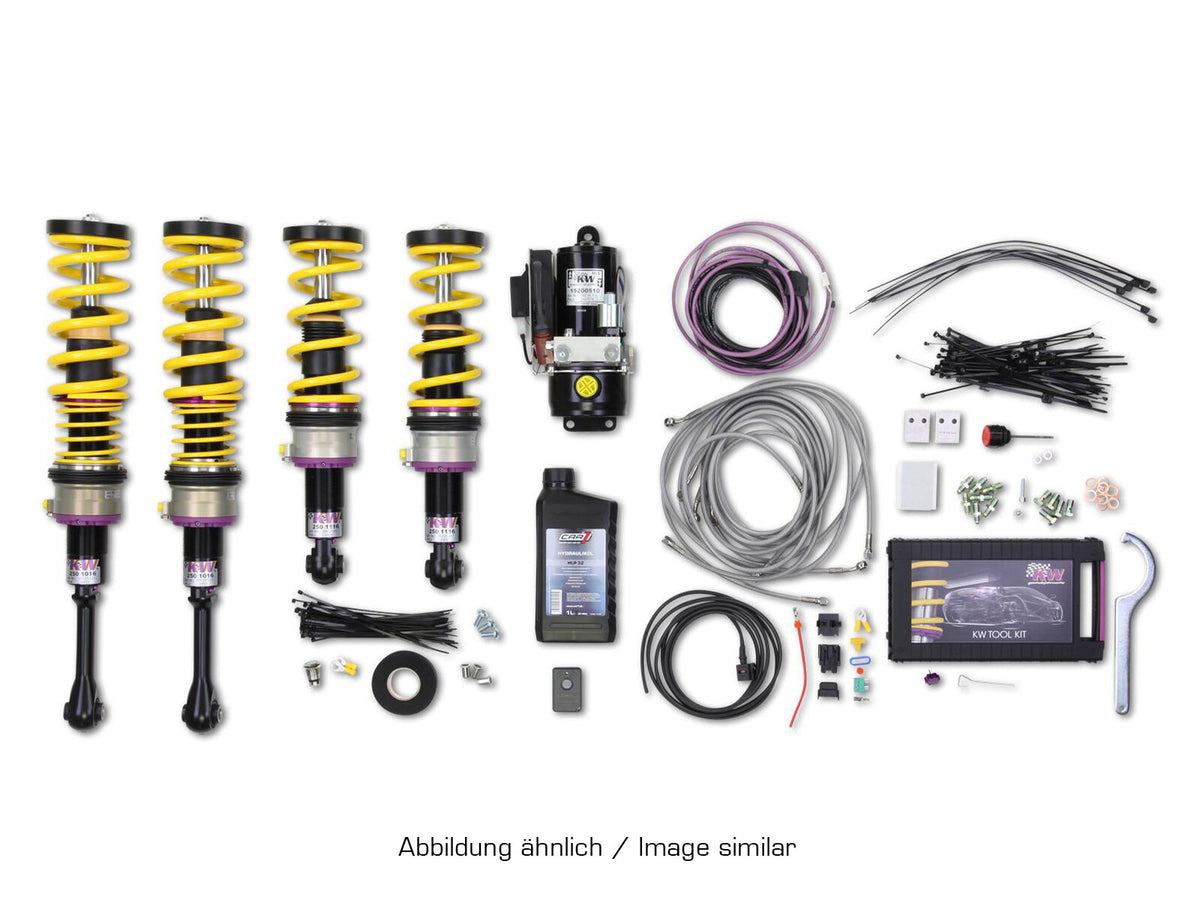

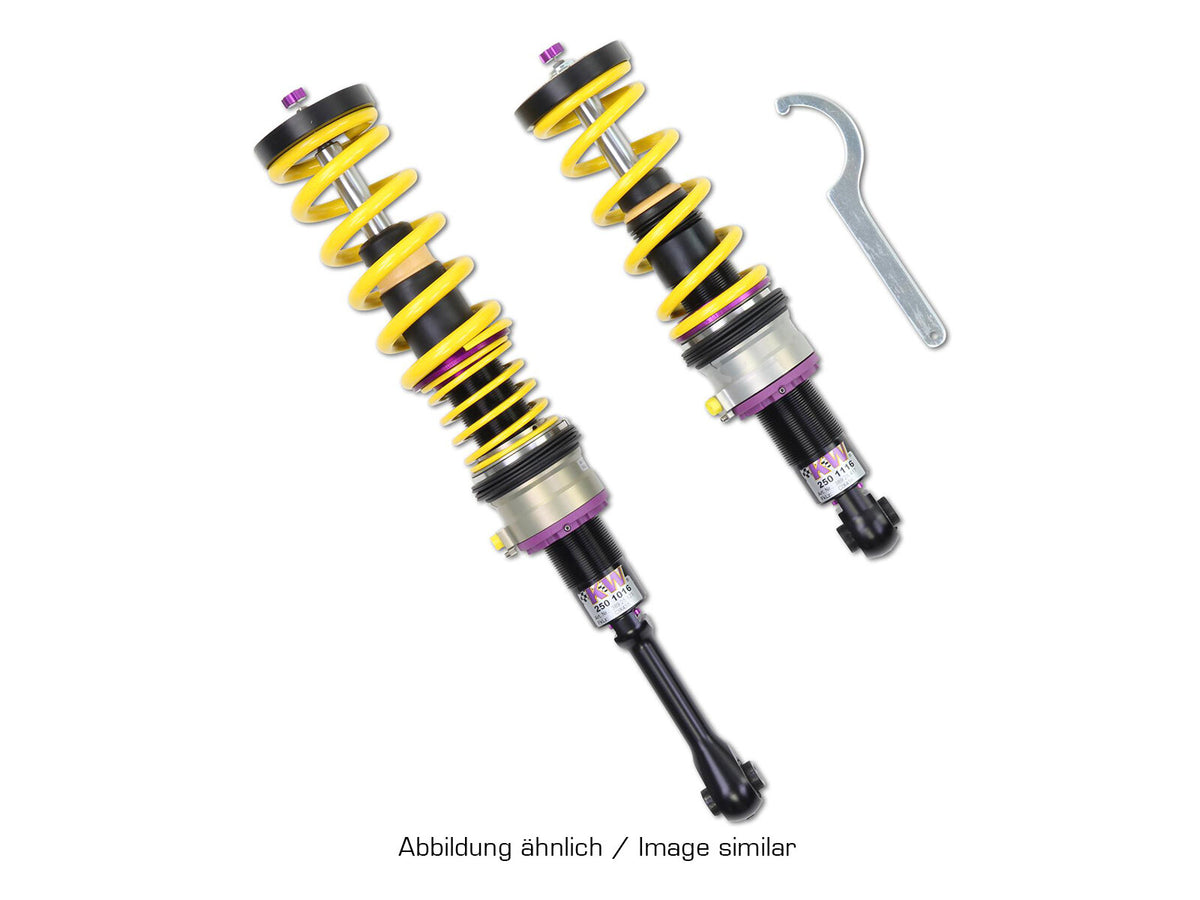

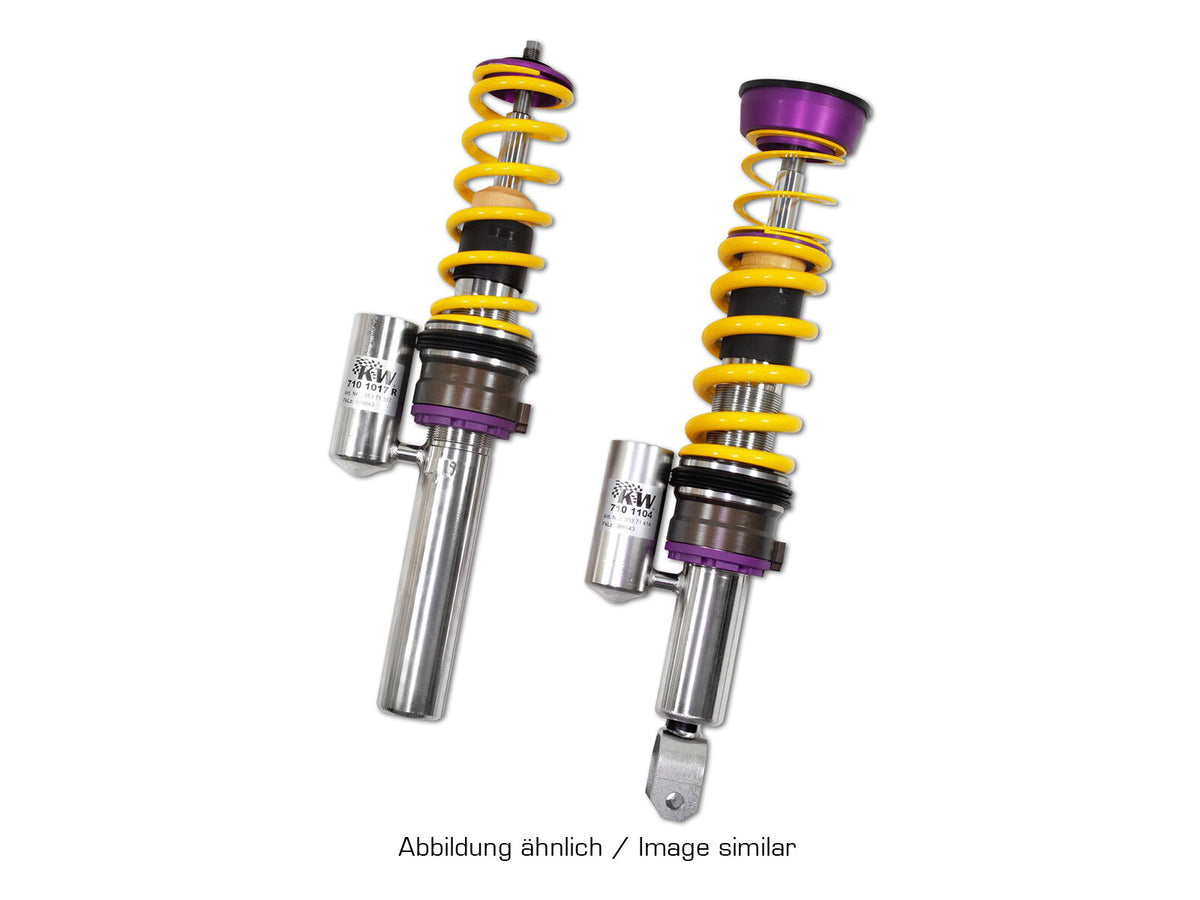

Porsche 996 1997-2005 Carrera 4/4S Turbo V3 Coilovers with HLS 4 KW

Porsche 996 1997-2005 Carrera 4/4S Turbo V3 Coilovers with HLS 4 KW

Carrera 4/4S Turbo V3 Coilovers with HLS 4 for the Porsche applications listed below. Vehicle-specific KW coilover suspension kit. Check the vehicle, model year, axle position, equipment and reference numbers before ordering.

Key features:

• Vehicle-specific KW coilover suspension kit

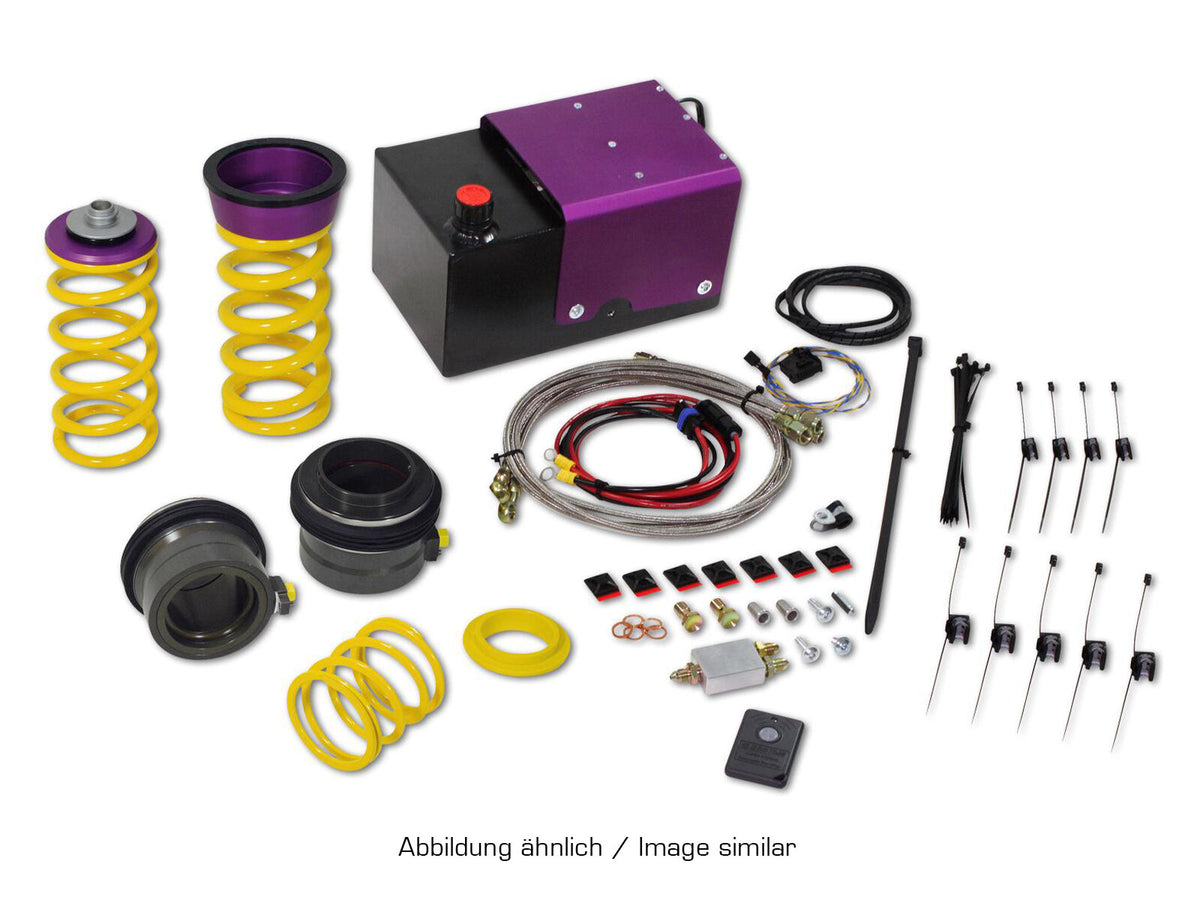

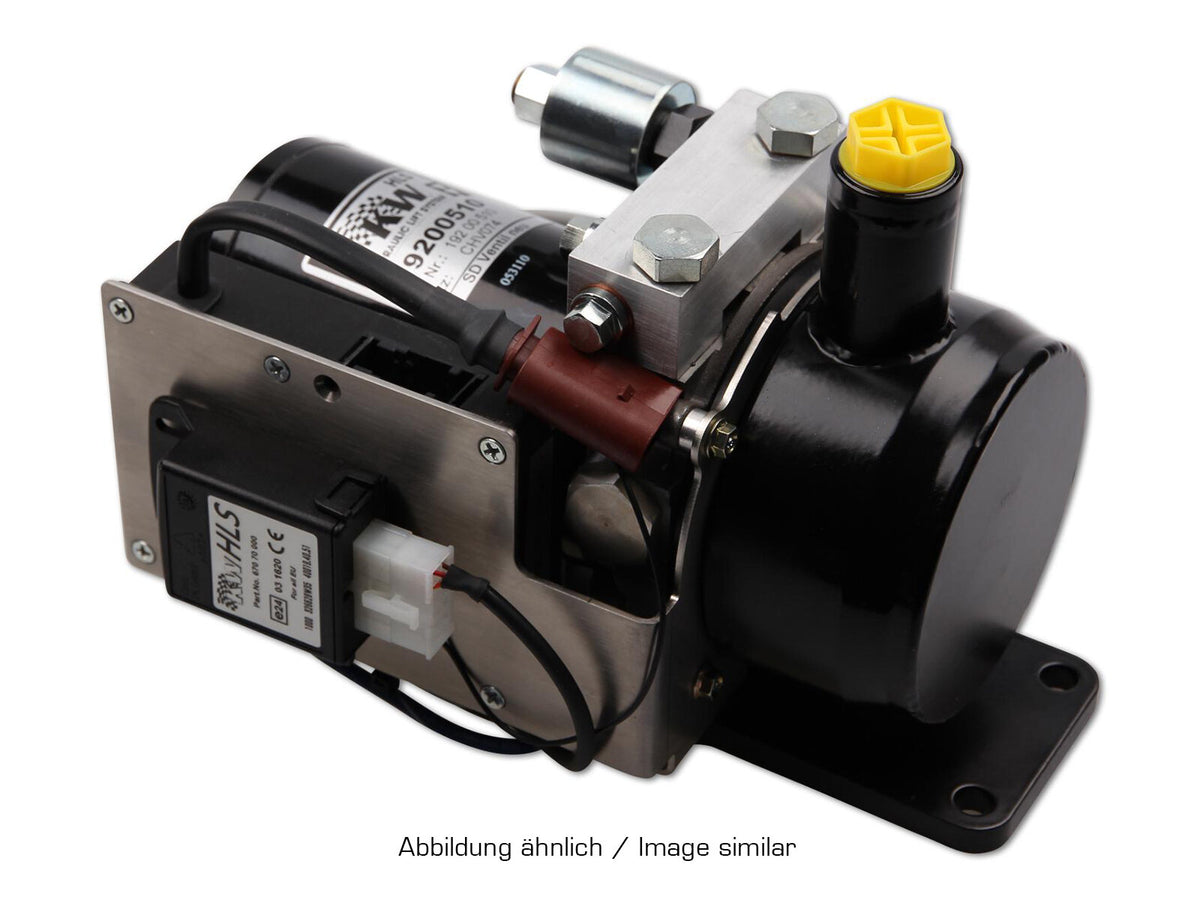

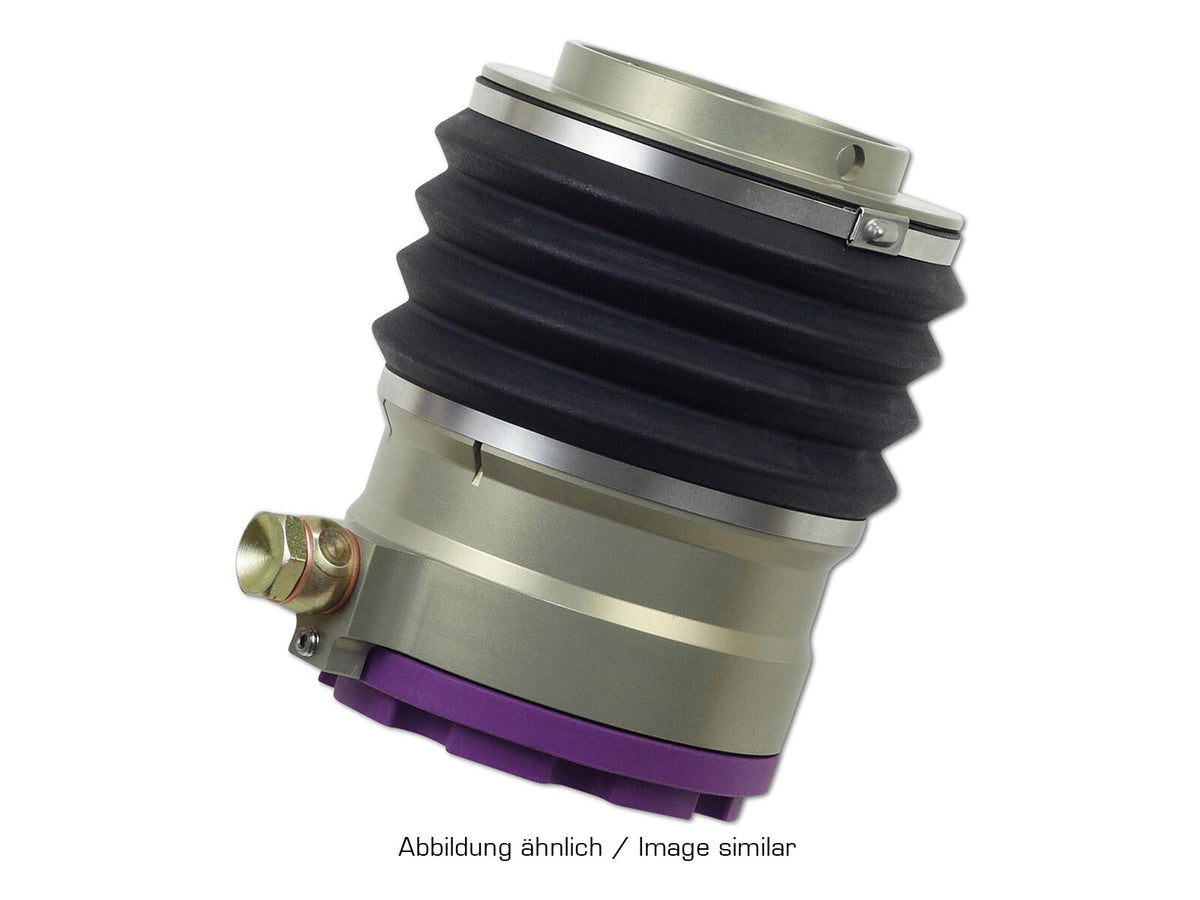

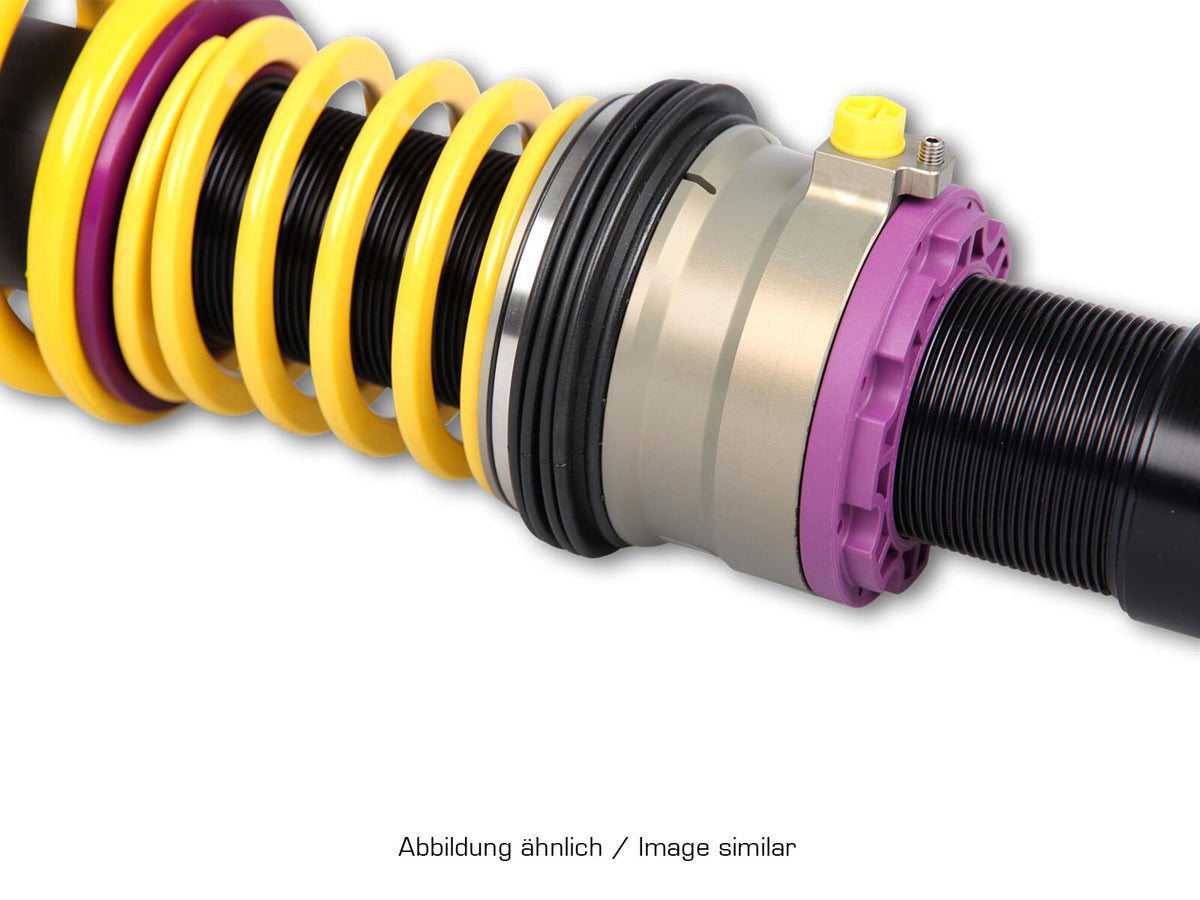

• HLS 4 hydraulically raises both axles
• Separate rebound and compression damping adjustment
• Product Line: Street Performance
• Version: HLS 4
• Damper Adjustment: Rebound and Compression
• Adjustment Front/Rear: Threaded/Threaded
• Axle Load Front/Rear: up to 825kg/up to 1180kg
• Lowering Front/Rear: 15-30/10-30mm (front/rear; supplier adjustment range)

Fits:

• 996 Carrera 4/4S/turbo
• Vehicles with an original battery longer than 278mm require battery replacement. Supplier recommends Varta Silver Dynamic 77Ah or Bosch S5 77Ah; battery is not included.
• With Porsche racing uniball top mounts 99633301190, KW top-mount adapter 68510036 is required.

Vehicle applications below are subject to the restrictions above:

• Porsche 996 3.4 Carrera 4 1997/8 - 2001/7 221 KW / 301 PS
• Porsche 996 3.4 Carrera 4 1997/9 - 1999/7 235 KW / 320 PS
• Porsche 996 3.6 Carrera 4 2001/10 - 2004/8 235 KW / 320 PS
• Porsche 996 3.6 Carrera 4S 2003/2 - 2004/7 254 KW / 345 PS
• Porsche 996 3.6 S 2004/8 - 2005/8 331 KW / 450 PS
• Porsche 996 3.6 turbo 4 2000/6 - 2005/8 309 KW / 420 PS
• Porsche 996 3.6 turbo 4S 2003/2 - 2005/8 331 KW / 450 PS
• Porsche 996 Cabriolet 3.4 Carrera 4 1998/2 - 2001/9 221 KW / 301 PS
• Porsche 996 Cabriolet 3.4 Carrera 4 1997/8 - 1999/7 235 KW / 320 PS
• Porsche 996 Cabriolet 3.6 Carrera 4 2001/10 - 2005/8 235 KW / 320 PS
• Porsche 996 Cabriolet 3.6 Carrera 4S 2002/6 - 2005/8 254 KW / 345 PS
• Porsche 996 Cabriolet 3.6 S 2004/8 - 2005/8 331 KW / 450 PS
• Porsche 996 Cabriolet 3.6 turbo 4 2003/10 - 2005/8 309 KW / 420 PS
• Porsche 996 Cabriolet 3.6 turbo 4S 2003/10 - 2005/8 331 KW / 450 PS

Reference numbers:

No Porsche reference number is specified by the supplier for this aftermarket suspension kit.

Partworks article number: 18588
